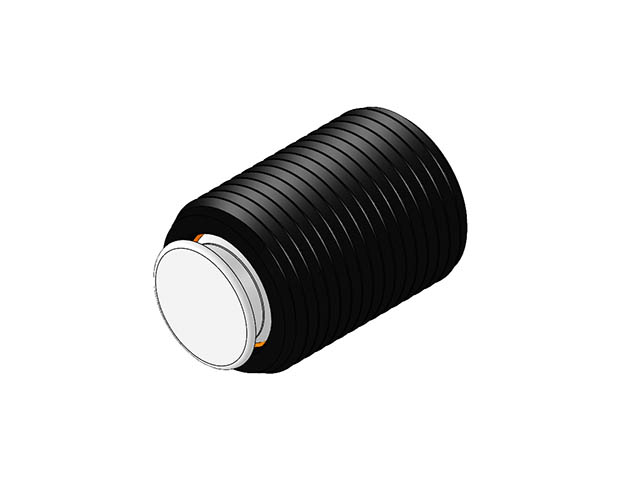

Full Threaded Swivots® Gripper Assembly - Flat Delrin Cone - Inch (TBU-DC) TBU-0755-DC

Full Threaded Swivots® Gripper Assembly - Flat Delrin Cone - Inch (TBU-DC). Threaded Design Swivot - 3/4-10 X 1 - Delrin Cone. The replaceable ball swivels to allow for self-alignment on uneven surfaces. The flat cone design provides a large contact surface for greater force distribution. The replaceable ball is made from non-marring white delrin. A Viton O-ring holds the ball in place while keeping contaminants out and providing smooth ball movement. The housing is made from alloy steel, heat treated to Rc 43/46 with black oxide finish. Replacement balls and O-rings can be ordered separately. Specifications: Thread External: 3/4-10; Length Thread in: 1; Diameter Contact Surface in: .551; Height Standoff in: .125; Swivel Degrees: 28; Hex Internal - Flat in: 3/8; Diameter Ball in: 1/2; Part No. Ball Only: BUB-500-DC.
