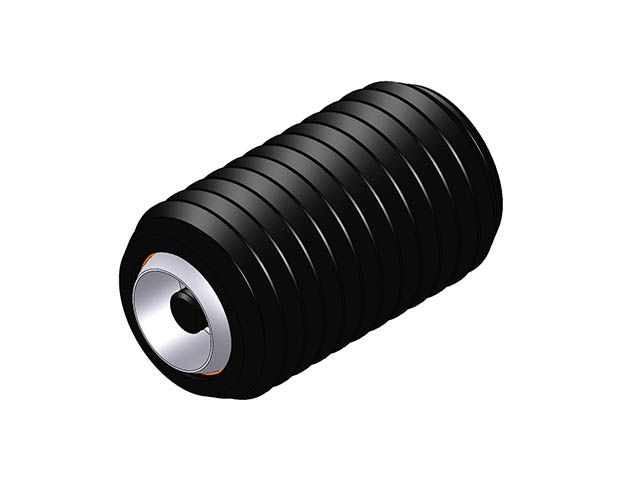

Full Threaded Swivots® Gripper Assembly - Replaceable Pad Style - Metric (MTBU) MTBU-24040

Full Threaded Swivots® Gripper Assembly - Replaceable Pad Style - Metric (MTBU). Threaded Design Swivot - M24 X 40 mm - Replaceable Pad. The replaceable pad swivels to allow for self-alignment on uneven surfaces. The replaceable pad fits in a hardened (Rc 58/60) 440c stainless ball cup and is held in place with a lock screw. The pad can be replaced when worn or a different style pad is required. The housing is made from alloy steel, heat treated to Rc 43/46 with black oxide finish. The parts below are for the Swivot assembly only and do not include a pad. Pads must be ordered separately by selecting any fixed gripper or rest pad with the proper diameter . More Information Specifications: Thread External mm: M24x3.0; Length Thread mm: 40; Hex Internal - Flat mm: 10; Swivel Degrees: 20; Standoff mm: 6; Diameter Ball mm: 15; Diameter Replaceable Pad mm: 12; Rating Load lbs: 12,233.
