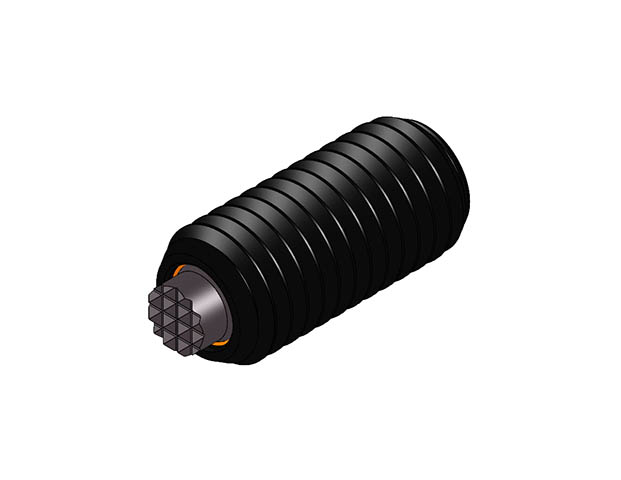

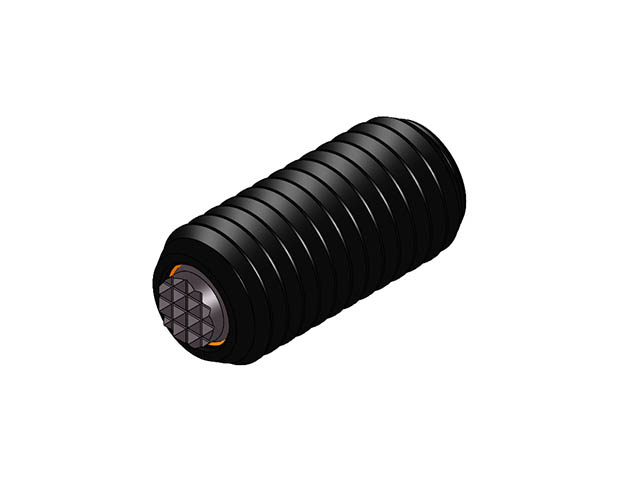

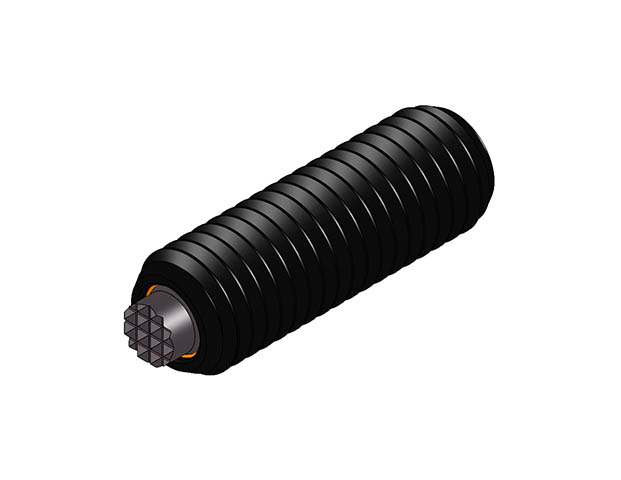

Full Threaded Swivots® Gripper Assembly - Serrated Tool Steel Ball - Metric (MTBU-S) MTBU-12025-S

Full Threaded Swivots® Gripper Assembly - Serrated Tool Steel Ball - Metric (MTBU-S). Threaded Design Swivot - M12 X 25 mm - Super Fine. The replaceable serrated ball swivels to allow for self-alignment on uneven surfaces. A Viton O-ring holds the ball in place while keeping contaminants out and providing smooth ball movement. The housing is made from alloy steel, heat treated to Rc 43/46 with black oxide finish. The replaceable ball is made from M-2 high speed steel heat treated to Rc 60/62. Replacement balls and O-rings can be ordered separately. Specifications: Thread External: M12x1.75; Length Thread mm: 25; Diameter Contact Surface mm: 6; Height Standoff mm: 1.5; Swivel Degrees: 28; Hex Internal - Flat mm: 6; Diameter Ball mm: 7; Part No. Ball Only: MBUB-070-S; Pattern Tooth: SF; Rating Load lbs: 3,440.
