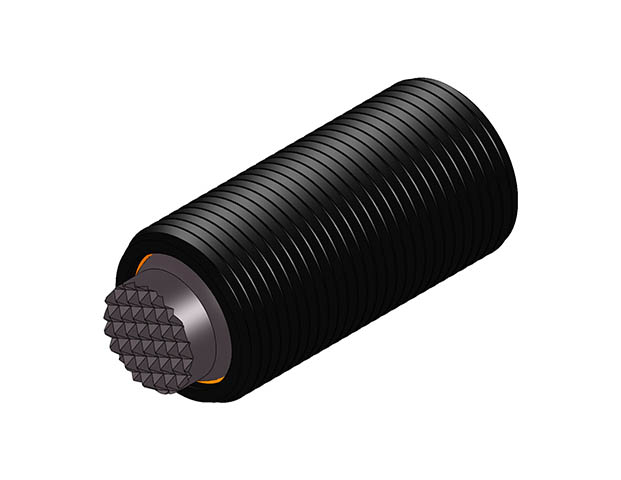

Full Threaded Swivots® Gripper Assembly - Serrated Tool Steel Ball - Inch (TBU-S) TBU-1114X2-EF-T

Full Threaded Swivots® Gripper Assembly - Serrated Tool Steel Ball - Inch (TBU-S). Threaded Design Swivot - 1-14 X 2 - Extra Fine - Tall. The replaceable serrated ball swivels to allow for self-alignment on uneven surfaces. A Viton O-ring holds the ball in place while keeping contaminants out and providing smooth ball movement. The housing is made from alloy steel, heat treated to Rc 43/46 with black oxide finish. The replaceable ball is made from M-2 high speed steel heat treated to Rc 60/62. Replacement balls and O-rings can be ordered separately. Specifications: Thread External: 1-14; Length Thread in: 2; Diameter Contact Surface in: 5/8; Height Standoff in: 1/4; Swivel Degrees: 34; Hex Internal - Flat in: 3/8; Diameter Ball in: 3/4; Part No. Ball Only: BUB-700-EF-T; Pattern Tooth: EF; Load Rating lbs: 14,757.
