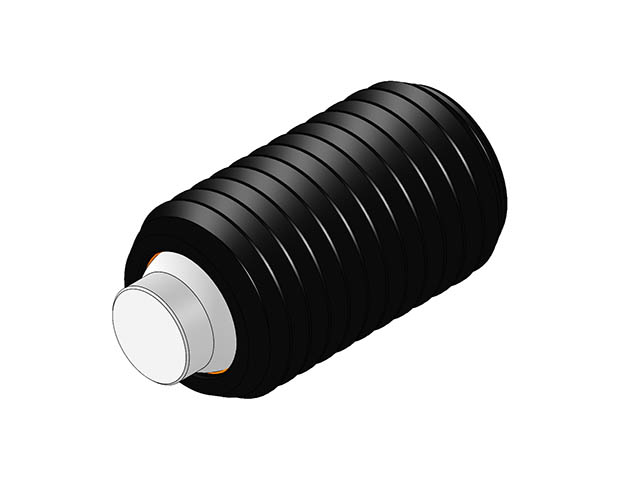

Full Threaded Swivots® Gripper Assembly - Flat Delrin Ball - Metric (MTBU-D) MTBU-24040-D-T

Full Threaded Swivots® Gripper Assembly - Flat Delrin Ball - Metric (MTBU-D). Threaded Design Swivot - M24 X 40 mm - Delrin - Tall. The replaceable flat ball swivels to allow for self-alignment on uneven surfaces. The replaceable ball is made from non-marring white delrin. A Viton O-ring holds the ball in place while keeping contaminants out and providing smooth ball movement. The housing is made from alloy steel, heat treated to Rc 43/46 with black oxide finish. Replacement balls and O-rings can be ordered separately. Specifications: Thread External: M24x3.0; Length Thread mm: 40; Diameter Contact Surface mm: 12; Height Standoff mm: 6; Swivel Degrees: 45; Hex Internal - Flat mm: 10; Diameter Ball mm: 15; Part No. Ball Only: MBUB-150-D-T.
