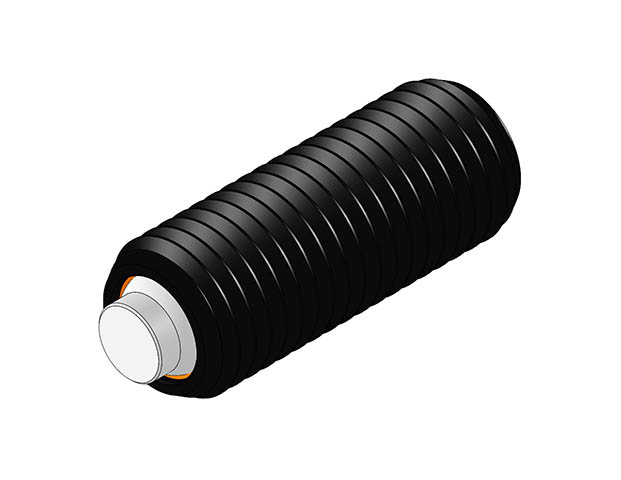

Full Threaded Swivots® Gripper Assembly - Flat Delrin Ball - Metric (MTBU-D) MTBU-20050-D

Full Threaded Swivots® Gripper Assembly - Flat Delrin Ball - Metric (MTBU-D). Threaded Design Swivot - M20 X 50 mm - Delrin. The replaceable flat ball swivels to allow for self-alignment on uneven surfaces. The replaceable ball is made from non-marring white delrin. A Viton O-ring holds the ball in place while keeping contaminants out and providing smooth ball movement. The housing is made from alloy steel, heat treated to Rc 43/46 with black oxide finish. Replacement balls and O-rings can be ordered separately. Specifications: Thread External: M20x2.5; Length Thread mm: 50; Diameter Contact Surface mm: 10; Height Standoff mm: 4; Swivel Degrees: 42; Hex Internal - Flat mm: 10; Diameter Ball mm: 13; Part No. Ball Only: MBUB-130-D.
