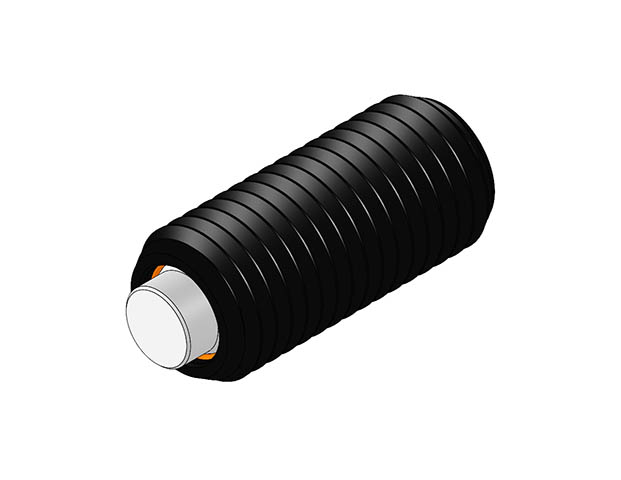

Full Threaded Swivots® Gripper Assembly - Flat Delrin Ball - Metric (MTBU-D) MTBU-16035-D-T

Full Threaded Swivots® Gripper Assembly - Flat Delrin Ball - Metric (MTBU-D). Threaded Design Swivot - M16 X 35 mm - Delrin -Tall. The replaceable flat ball swivels to allow for self-alignment on uneven surfaces. The replaceable ball is made from non-marring white delrin. A Viton O-ring holds the ball in place while keeping contaminants out and providing smooth ball movement. The housing is made from alloy steel, heat treated to Rc 43/46 with black oxide finish. Replacement balls and O-rings can be ordered separately. Specifications: Thread External: M16x2.0; Length Thread mm: 35; Diameter Contact Surface mm: 8.5; Height Standoff mm: 3; Swivel Degrees: 24; Hex Internal - Flat mm: 8; Diameter Ball mm: 10; Part No. Ball Only: MBUB-100-D-T.
