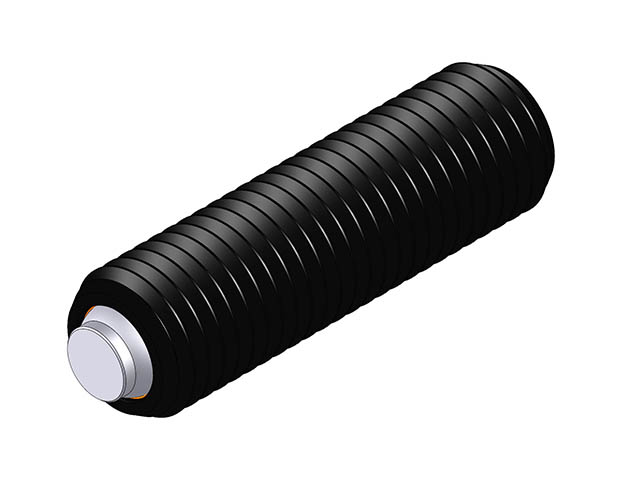

Full Threaded Swivots® Gripper Assembly - Flat Tool Steel Ball - Metric (MTBU-F) MTBU-24080-F

Full Threaded Swivots® Gripper Assembly - Flat Tool Steel Ball - Metric (MTBU-F). Threaded Design Swivot - M24 X 80 mm - Flat. The replaceable flat ball swivels to allow for self-alignment on uneven surfaces. A Viton O-ring holds the ball in place while keeping contaminants out and providing smooth ball movement. The housing is made from alloy steel, heat treated to Rc 43/46 with black oxide finish. The replaceable ball is made from M-2 high speed steel heat treated to Rc 60/62. Replacement balls and O-rings can be ordered separately. Specifications: Thread External: M24x3.0; Length Thread mm: 80; Diameter Contact Surface mm: 12; Height Standoff mm: 4; Swivel Degrees: 45; Hex Internal - Flat mm: 10; Diameter Ball mm: 15; Part No. Ball Only: MBUB-150-F; Rating Load lbs: 12,233.
