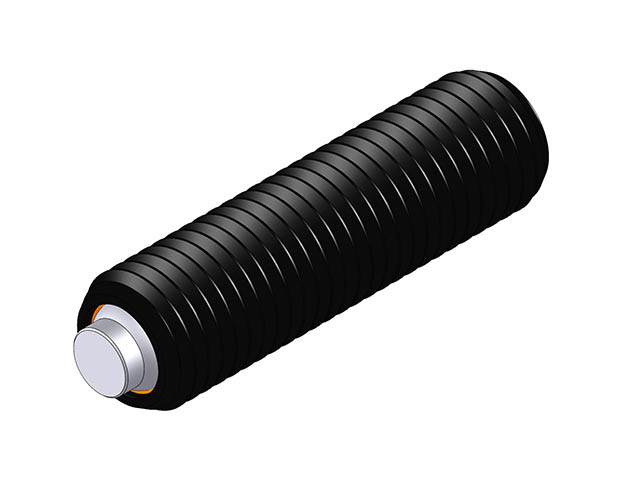

Full Threaded Swivots® Gripper Assembly - Flat Tool Steel Ball - Metric (MTBU-F) MTBU-20070-F

Full Threaded Swivots® Gripper Assembly - Flat Tool Steel Ball - Metric (MTBU-F). Threaded Design Swivot - M20 X 70 mm - Flat. The replaceable flat ball swivels to allow for self-alignment on uneven surfaces. A Viton O-ring holds the ball in place while keeping contaminants out and providing smooth ball movement. The housing is made from alloy steel, heat treated to Rc 43/46 with black oxide finish. The replaceable ball is made from M-2 high speed steel heat treated to Rc 60/62. Replacement balls and O-rings can be ordered separately. Specifications: Thread External: M20x2.5; Length Thread mm: 70; Diameter Contact Surface mm: 10; Height Standoff mm: 4; Swivel Degrees: 42; Hex Internal - Flat mm: 10; Diameter Ball mm: 13; Part No. Ball Only: MBUB-130-F; Rating Load lbs: 8,379.
