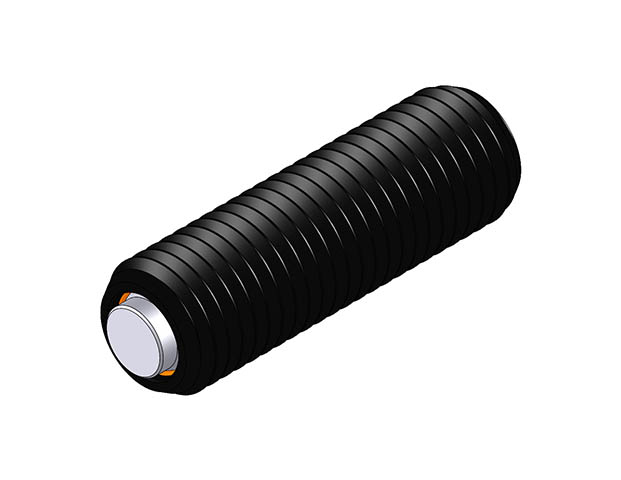

Full Threaded Swivots® Gripper Assembly - Flat Tool Steel Ball - Metric (MTBU-F) MTBU-16050-F

Full Threaded Swivots® Gripper Assembly - Flat Tool Steel Ball - Metric (MTBU-F). Threaded Design Swivot - M16 X 50 mm - Flat. The replaceable flat ball swivels to allow for self-alignment on uneven surfaces. A Viton O-ring holds the ball in place while keeping contaminants out and providing smooth ball movement. The housing is made from alloy steel, heat treated to Rc 43/46 with black oxide finish. The replaceable ball is made from M-2 high speed steel heat treated to Rc 60/62. Replacement balls and O-rings can be ordered separately. Specifications: Thread External: M16x2.0; Length Thread mm: 50; Diameter Contact Surface mm: 8.5; Height Standoff mm: 1.5; Swivel Degrees: 24; Hex Internal - Flat mm: 8; Diameter Ball mm: 10; Part No. Ball Only: MBUB-100-F; Rating Load lbs: 5,190.
