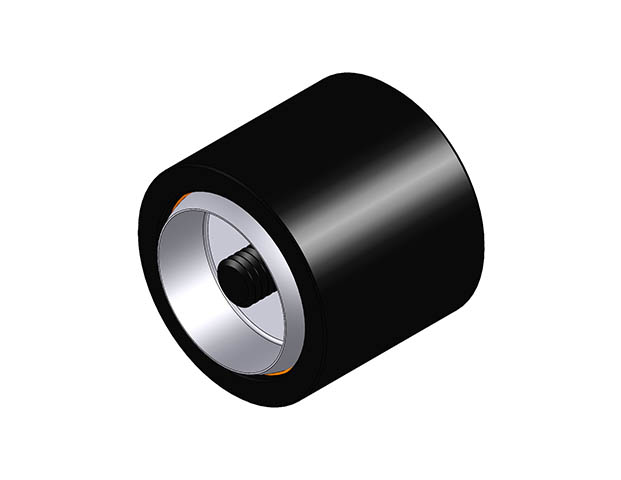

Base Design Swivots® Gripper Assembly - Replaceable Pad Style - Metric (MBBU) MBBU-3030

Base Design Swivots® Gripper Assembly - Replaceable Pad Style - Metric (MBBU). Base Design Swivot - 30 mm Dia X 26 mm - Replaceable Ball. The replaceable pad swivels to allow for self-alignment on uneven surfaces. Cylindrical body allows for installation in tight areas. The housing is tapped for backside fastening. The replaceable pad fits in a hardened (Rc 58/60) 440c stainless ball cup and is held in place with a lock screw. The pad can be replaced when worn or a different style pad is required. The housing is made from alloy steel, heat treated to Rc 43/46 with black oxide finish. The parts below are for the Swivot assembly only and do not include a pad. Pads must be ordered separately by selecting any fixed gripper or rest pad with the proper diameter . * F Stand Off 1 - Stand off when using a 10mm height pad; F Stand Off 2 - Stand off when using a 12mm height pad. ** Select any fixed gripper or rest pad with the proper diameter.Select the following link for additional technical information . More Information Specifications: Diameter Overall mm: 30; Length Body mm: 26; Diameter Contact Surface mm: 8.5; Thread Internal - Tap: M12x1.75; Degree Swivel Degrees: 20; Standoff mm: 6; Diameter Ball mm: 23; Diameter Replaceable Pad: 20; Rating Load lbs: 21,348.
