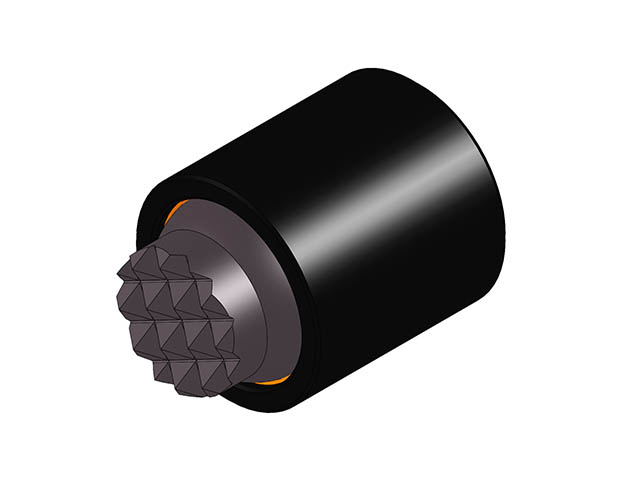

Base Design Swivots® Gripper Assembly - Serrated Tool Steel Ball - Metric (MBBU-S) MBBU-1924-S-T

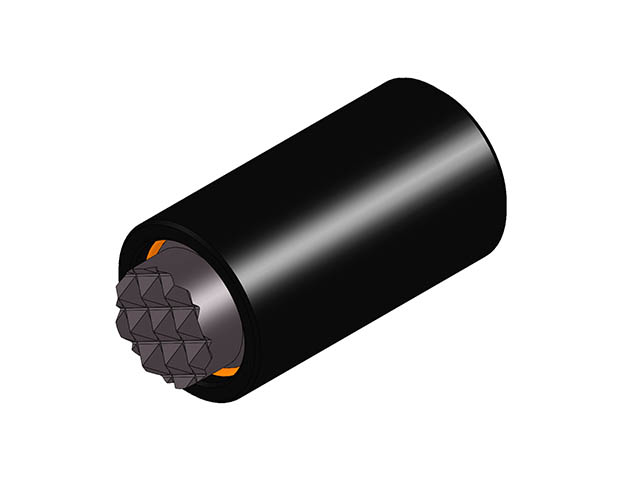

Base Design Swivots® Gripper Assembly - Serrated Tool Steel Ball - Metric (MBBU-S). Base Design Swivot - 19 mm Dia X 20 mm - Fine - Tall. Cylinderical body allows for installation in tight areas. The housing is tapped for backside fastening. The replaceable serrated ball swivels to allow for self-alignment on uneven surfaces. A Viton O-ring holds the ball in place while keeping contaminants out and providing smooth ball movement. The housing is made from alloy steel, heat treated to Rc 43/46 with black oxide finish. The replaceable ball is made from M-2 high speed steel heat treated to Rc 60/62. Replacement balls and O-rings can be ordered separately. Specifications: Diameter Overall mm: 19; Length Body mm: 20; Diameter Contact Surface mm: 12; Standoff mm: 6; Degree Swivel Degrees: 45; Thread Internal - Tap: M8x1.25; Length Thread mm: 8.5; Diameter Ball mm: 15; Part No. Ball Only: MBUB-150-S-T; Pattern Tooth: Fine.
