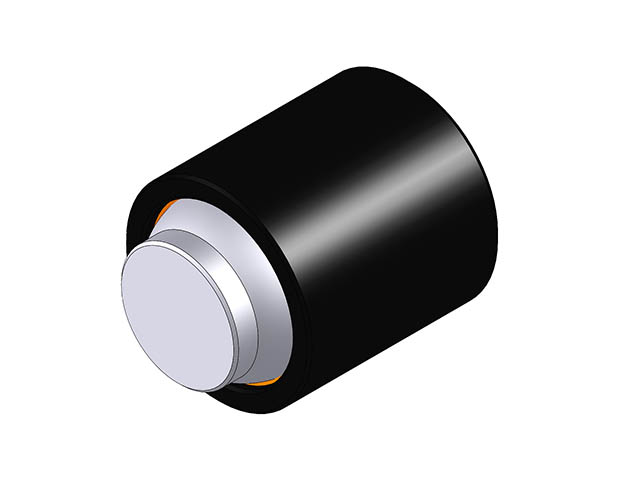

Base Design Swivots® Gripper Assembly - Flat Tool Steel Ball - Metric (MBBU-F) MBBU-1924-F

Base Design Swivots® Gripper Assembly - Flat Tool Steel Ball - Metric (MBBU-F). Base Design Swivot - 19 mm Dia X 20 mm - Flat. Cylindrical body allows for installation in tight areas. The housing is tapped for backside fastening. The replaceable flat ball swivels to allow for self-alignment on uneven surfaces. A Viton O-ring holds the ball in place while keeping contaminants out and providing smooth ball movement. The housing is made from alloy steel, heat treated to Rc 43/46 with black oxide finish. The replaceable ball is made from M-2 high speed steel heat treated to Rc 60/62. Replacement balls and O-rings can be ordered separately. Specifications: Diameter Overall mm: 19; Length Body mm: 20; Diameter Contact Surface mm: 12; Height Standoff mm: 4; Degree Swivel Degrees: 45; Thread Internal - Tap: M8x1.25; Length Thread mm: 8.5; Diameter Base mm: 15; Part No. Ball Only mm: MBUB-150-F; Rating Load lbs: 8,688.
