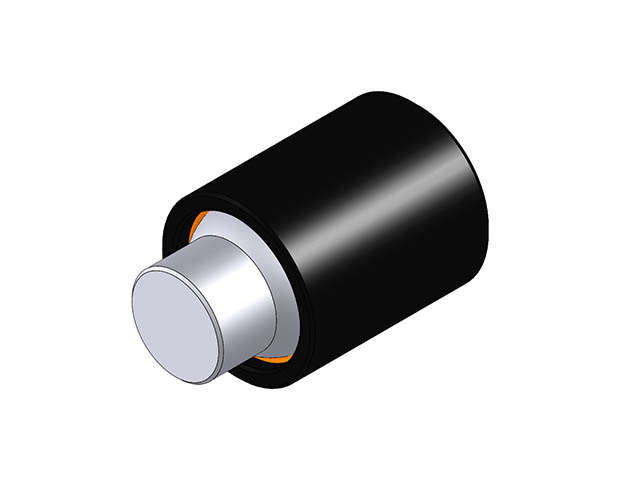

Base Design Swivots® Gripper Assembly - Flat Tool Steel Ball - Inch (BBU-F) BBU-500-F-T

Base Design Swivots® Gripper Assembly - Flat Tool Steel Ball - Inch (BBU-F). Base Design Swivot - 5/8 in Dia X 3/4 in - Flat - Tall. Cylindrical body allows for installation in tight areas. The housing is tapped for backside fastening. The replaceable flat ball swivels to allow for self-alignment on uneven surfaces. A Viton O-ring holds the ball in place while keeping contaminants out and providing smooth ball movement. The housing is made from alloy steel, heat treated to Rc 43/46 with black oxide finish. The replaceable ball is made from M-2 high speed steel heat treated to Rc 60/62. Replacement balls and O-rings can be ordered separately. Specifications: Diameter Overall in: 5/8; Length Body in: 3/4; Diameter Contact Surface in: 3/8; Height Standoff in: 1/4; Degree Swivel Degrees: 40; Thread Internal - Tap: 1/4-28; Length Thread in: 1/4; Diameter Ball in: 1/2; Part No. Ball Only: BUB-500-F-T; Rating Load lbs: 5,849.
