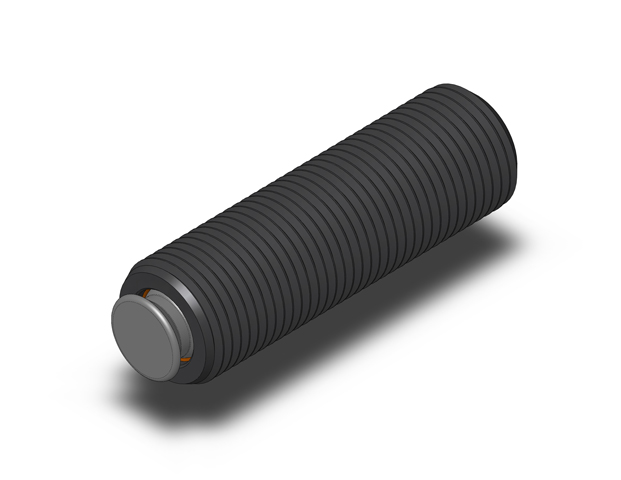

Thrust Screws - Threaded Design - Flat Delrin Cone - Inch (TST-DC) TST-0620X2-DC

Thrust Screws - Threaded Design - Flat Delrin Cone - Inch (TST-DC). Threaded Thrust Screw - Flat Cone Delrin - 5/8-18 X 2 in. These thrust screw assemblies allow straight line static load thrust without transmitting torsional or radial force on to the contact area. The free floating ball design allows the thrust screw to continue to rotate while the ball remains stationary against the contact surface. Ideal for irregular shaped or contoured applications. The housing is made from alloy steel, heat treated to Rc 43/46 with a black oxide finish. The replaceable ball is held in place with a viton O-ring which keeps contaminants out and allows the ball to swivel. The ball is made from non-marring white delrin and ground flat. Replacement balls and O-rings can be ordered separately. Specifications: Thread External: 5/8-18; Length Thread in: 2; Diameter Contact Surface in: 7/16; Height Standoff in: 1/8; Swivel Degrees: 28; Hex Internal - Flat in: 5/16; Diameter Ball in: 3/8; Part No. Ball Only: BUB-300-DC.
