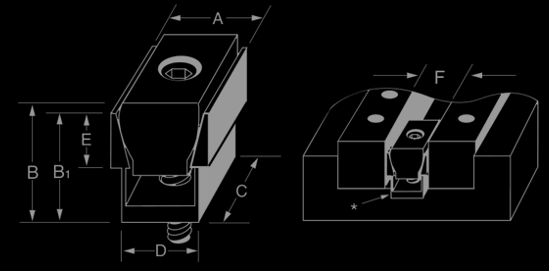

A, B, C, E in Specifications refer to this drawing.
Mitee-Bite · UNIFORCE® CLAMPS
UNIFORCE® CLAMPS, 4 - 40 — 60375
- MPN
- 60375
- SKU
- CW-MITE-000187
UNIFORCE® CLAMPS — Model: 375; A: .360; B: .38; B1: .375
Mitee-Bite prices this line on request. Add it to your quote — we answer within 1 business day, and quotes carry the exact part number so nothing gets re-found.
The Mitee-Bite 60375 is a CNC workholding component from the UNIFORCE® CLAMPS line. It is specified at 4 - 40 thread, uniforce® clamp Uniforce® Clamp, 50+ 50+ and 67025 67037. It secures parts for milling and multi-axis machining while keeping cutter access clear, which matters most in 5-axis and low-clearance setups. All Industry Supplies sources this item for Minnesota-area manufacturers, with certification documentation available on request for aerospace, medical and defense work.
| Thread size | 4 - 40 |
|---|---|
| 250 | 375 |
| 67025 | 67037 |
| A | .360 |
| B | .38 |
| C | .470 |
| E | .185 |
| B1 | .375 |
| D* | .310 |
| 50+ | 50+ |
| F† | .375 |
| Model | 375 |
| eplacement | 7 60307 |
| Uniforce® Clamp | Uniforce® Clamp |
| Hex R Key Size Chann | 3/32 6020 |
| Maximum To Spread (F | .390 |
| Number of Clamps Per Pack* | 6 |
| Max. Holding rque* Force t/Lbs) (Lbs) | 1.1 310 |
How do I get a price for the Mitee-Bite 60375?
Add it to a quote request or call 1-763-421-8250. All Industry Supplies answers quote requests within 1 business day.
Is the Mitee-Bite 60375 available from stock?
All Industry Supplies sources Mitee-Bite to order from the manufacturer. Lead times are confirmed on your quote — most items ship within days.
