Jergens · Ball Lock® Multi-Purpose Subplates
Ball Lock® Multi-Purpose Subplates 49112
- MPN
- 49112
- SKU
- BL-JERG-000332
Ball Lock® Multi-Purpose Subplates — Unit: Inch; Plate Size (in): 40 x 20; Plate Thickness (in): 1 1/4; Weight (lbs): 285
Request pricing
Jergens prices this line on request. Add it to your quote — we answer within 1 business day, and quotes carry the exact part number so nothing gets re-found.
The Jergens 49112 is listed in the Ball Lock® Multi-Purpose Subplates line. We list it under Ball Lock + Fixture Plates in our Work Holding & Fixturing range.
01
About the Jergens 49112

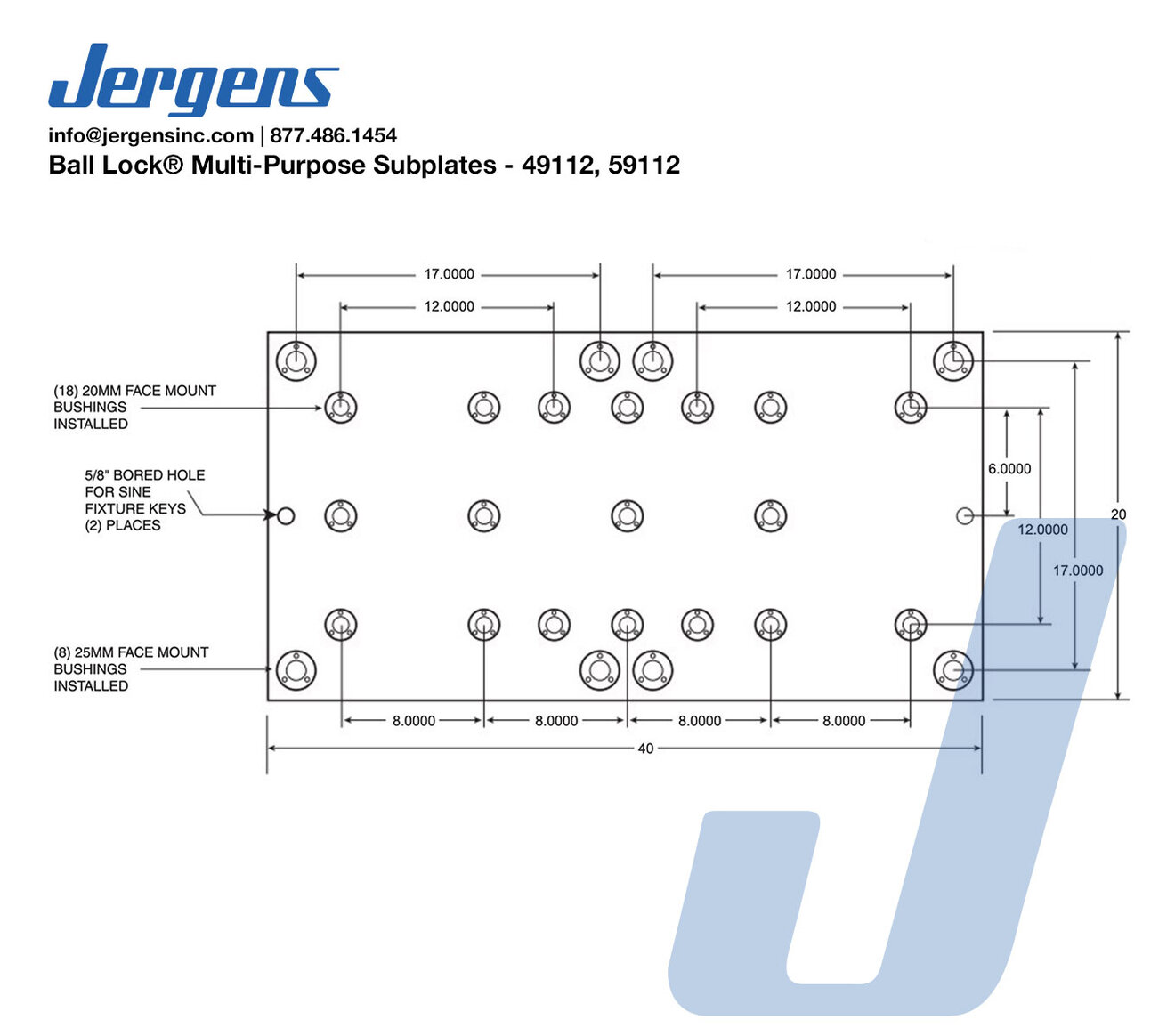

Jergens Ball Lock® Multi-Purpose Subplates accommodate a wide variety of fixture plates and vises. This versatility facilitates using the same VMC for diverse products in repetitive runs and long and short batch sizes. Features, Benefits, & Product Specifications: - Material: Fremax™ 15 Steel or Equivalent - Thickness: 1-1/4" ±0.005" (Inch), 31.75mm ±0.13mm (Metric) - Parallel within 0.001" (0.025mm)
02
Specifications
| Weight | 285 |
|---|---|
| Unit | Inch |
| Weight (lbs) | 285 |
| Plate Size (in) | 40 x 20 |
| Plate Thickness (in) | 1 1/4 |
03
Common questions about the Jergens 49112
How do I get a price for the Jergens 49112?
Add it to a quote request or call 1-763-421-8250. All Industry Supplies answers quote requests within 1 business day.
Is the Jergens 49112 available from stock?
All Industry Supplies sources Jergens to order from the manufacturer. Lead times are confirmed on your quote — most items ship within days.
