Jergens · Ball Lock® Bridgeport Style Subplates
Ball Lock® Bridgeport Style Subplates 49121
- MPN
- 49121
- SKU
- BL-JERG-000330
Ball Lock® Bridgeport Style Subplates — Unit: Inch; Plate Size (in): 15 x 10; Plate Thickness +/-0.005 (in): 3/4; Weight (lbs): 32
Request pricing
Jergens prices this line on request. Add it to your quote — we answer within 1 business day, and quotes carry the exact part number so nothing gets re-found.
01About this part

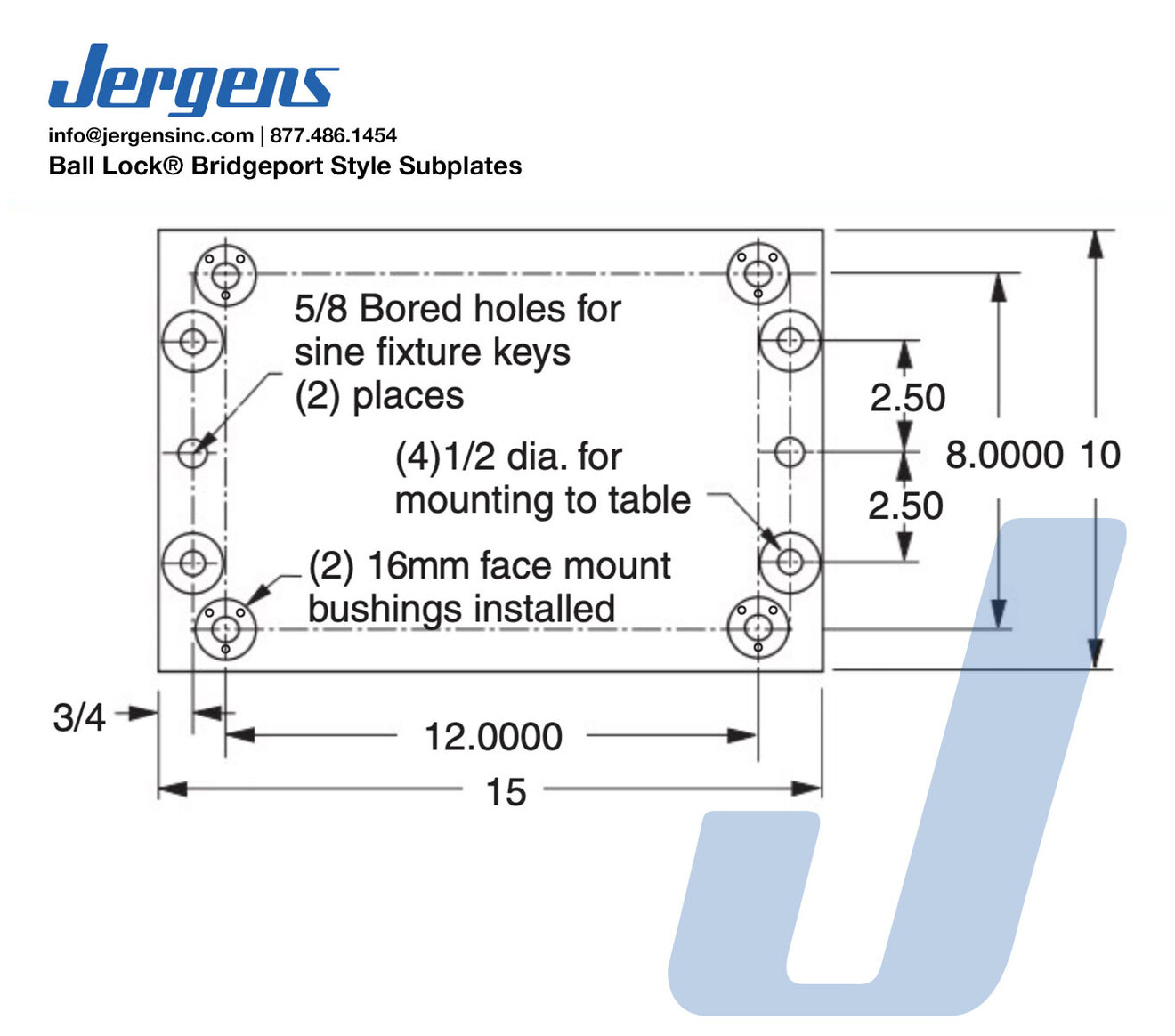

Jergens Ball Lock® Bridgeport Style Subplates are equipped with (4) installed 16mm Ball Lock® Face Mount Receiver Bushings and 1/2" (12mm) mounting holes. Used with the Ball Lock® Fixture Plates Part No.'s 28731 or 28831 for Inch and Part No.'s 58731 or 58831 for Metric. Features, Benefits, & Product Specifications: - Material: Fremax™ 15 Steel Plate or Equivalent - Thickness: 3/4" ±0.005" (Inch), 19.05mm ±0.13mm (Metric) - Parallel within 0.001" (0.025mm)
02Specifications
| Weight | 32 |
|---|---|
| Unit | Inch |
| Weight (lbs) | 32 |
| Plate Size (in) | 15 x 10 |
| Plate Thickness +/-0.005 (in) | 3/4 |
03Common questions
How do I get a price for the Jergens 49121?
Add it to a quote request or call 1-763-421-8250. All Industry Supplies answers quote requests within 1 business day.
Is the Jergens 49121 available from stock?
All Industry Supplies sources Jergens to order from the manufacturer. Lead times are confirmed on your quote — most items ship within days.
