Jergens · Ball Lock® Standard Subplates
Ball Lock® Standard Subplates 49101
- MPN
- 49101
- SKU
- BL-JERG-000326
Ball Lock® Standard Subplates — Unit: Inch; Plate Size (in): 16 x 16; Plate Thickness (in): 1 1/8; Weight (lbs): 81
Request pricing
Jergens prices this line on request. Add it to your quote — we answer within 1 business day, and quotes carry the exact part number so nothing gets re-found.
01About this part

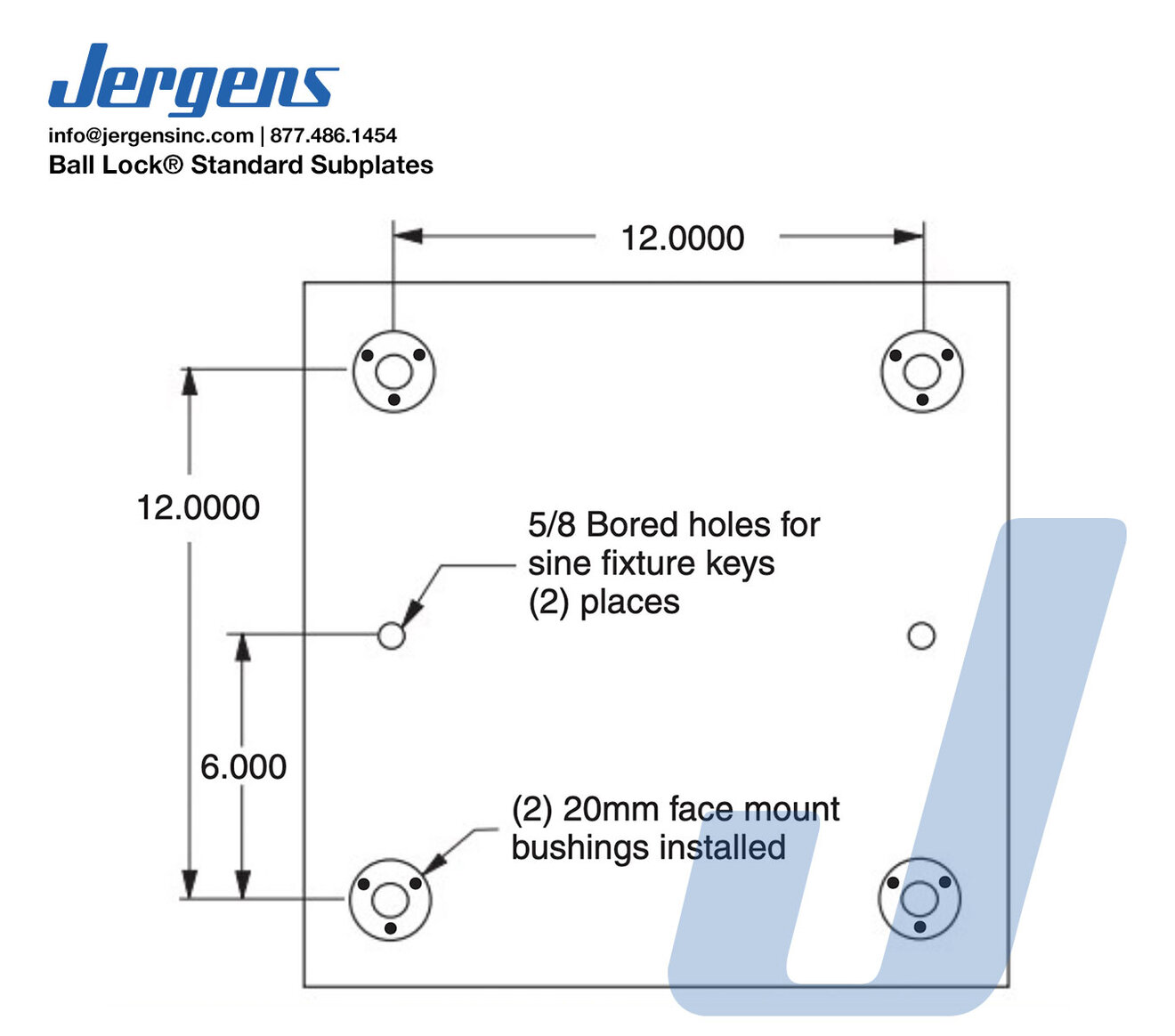

Jergens Ball Lock® Standard Subplates are equipped with (4) 20mm Ball Lock® Face Mount Receiver Bushings for use with 14" x 14" (350mm x 350mm) or 16"x16" (400mm x 400mm) fixture plates. Ideal for horizontal machining centers or multiple pallet machining centers. Features, Benefits, & Product Specifications: - Material: Fremax™ 15 Steel Plate or Equivalent - Thickness: 1-1/8" ±0.005" (Inch), 28.57mm ±0.13mm (Metric) - Parallel within 0.001" (0.025mm)
02Specifications
| Weight | 81 |
|---|---|
| Unit | Inch |
| Weight (lbs) | 81 |
| Plate Size (in) | 16 x 16 |
| Plate Thickness (in) | 1 1/8 |
03Common questions
How do I get a price for the Jergens 49101?
Add it to a quote request or call 1-763-421-8250. All Industry Supplies answers quote requests within 1 business day.
Is the Jergens 49101 available from stock?
All Industry Supplies sources Jergens to order from the manufacturer. Lead times are confirmed on your quote — most items ship within days.
