Ball Lock® Shanks 49601
- MPN
- 49601
- SKU
- BL-JERG-000012
Ball Lock® Shanks — Unit: Inch; Fixture Plate Thickness +/-0.005 (in): 0.75; Shank Diameter A (mm): 20; Head of Shank Height B (in): 0.38
Request pricing
Jergens prices this line on request. Add it to your quote — we answer within 1 business day, and quotes carry the exact part number so nothing gets re-found.
01About this part
Any Ball Lock® application requires at least (2) sets of shanks, receiver bushings, and liners. The liners are placed into the fixture plate to insure extremely accurate positioning. If more than (2) shanks are required (to provide additional hold down force), omit the liner bushing so that these additional holes will not interfere with your primary locating holes. Features, Benefits, & Product Specifications: Material: 4340 Steel Finish: Black Oxide Heat Treat: Shanks: 40-45 RC Operating Temperature Range: -20°F to 400°F (-30°C to 200°C)
02Specifications
| Unit | Inch |
|---|---|

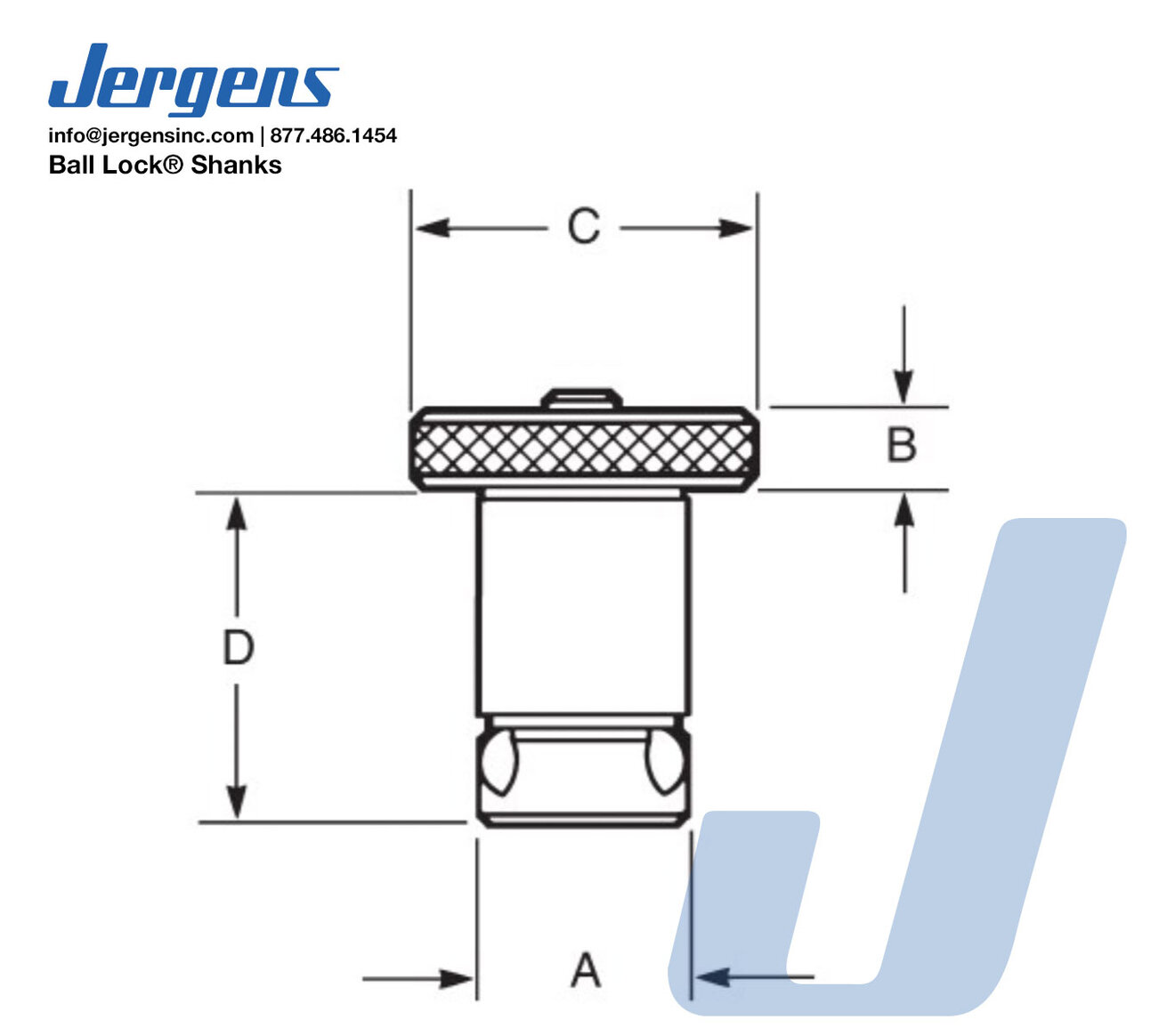

| Shank Diameter A (mm) | 20 |
| Length Under Head D (in) | 1.53 |
| Max. Hold-Down Force (lbs) | 3000 |
| Head of Shank Height B (in) | 0.38 |
| Shank Repair Kit Part Number | 49901 |
| Head of Shank Diameter C (in) | 1.75 |
| Hex Wrench Size for Set Screw | 1/8 |
| Recommended Screw Torque (ft/lbs) | 3 |
| Fixture Plate Thickness +/-0.005 (in) | 0.75 |
03Common questions
How do I get a price for the Jergens 49601?
Add it to a quote request or call 1-763-421-8250. All Industry Supplies answers quote requests within 1 business day.
Is the Jergens 49601 available from stock?
All Industry Supplies sources Jergens to order from the manufacturer. Lead times are confirmed on your quote — most items ship within days.
