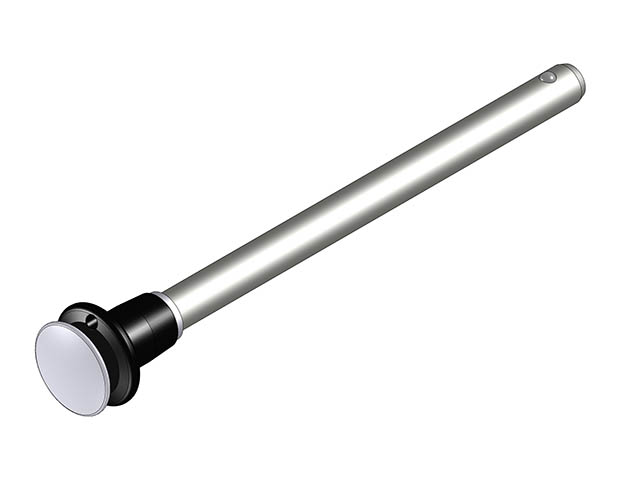

Quick Release Ball Lock Pin - Dome Handle - 17-4 SS Shank - Aluminum Handle - Metric (MDACH) MDACH-08-100

Quick Release Ball Lock Pin - Dome Handle - 17-4 SS Shank - Aluminum Handle - Metric (MDACH). Dome Handle Pin - 17-4 SS Shank - 8mm Dia X 100mm. These positive locking quick release pins have a wide range of uses in fastening, locating, and alignment applications. The pins will not release until the button on the handle is depressed. Once the button is depressed, the balls retract into the shank allowing the pin to be inserted or removed into or out of a hole. The shanks are made from 17-4 stainless steel. The dome actuator buttons are made from 2024-T4 aluminum and clear anodized. The handles are made from 2024-T4 aluminum and anodized black. The large ergonomic dome actuator button facilitates easy installation and removal. Pins in other grip lengths are available as special orders. Specifications: Diameter Nominal mm: 8; Diameter Max mm: 7.96; Diameter Min mm: 7.92; Length Grip mm: 100; Width at Balls mm: 9.42; Length to top of Balls mm: 8; Height Handle mm: 25.5; Diameter Handle - Base mm: 11.9; Height Handle - Base mm: 16; Diameter Button mm: 19.
