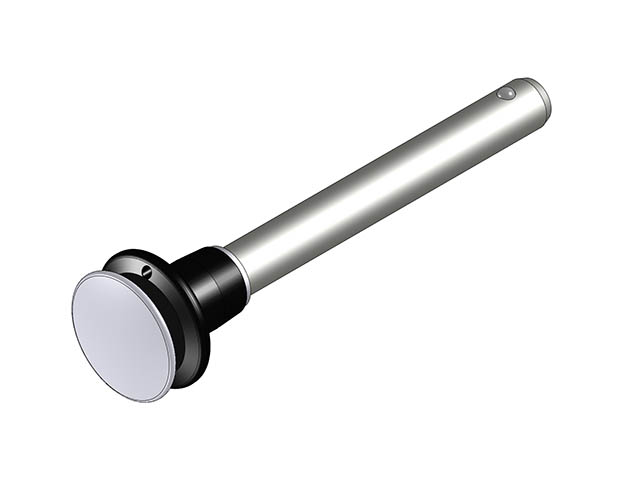

Quick Release Ball Lock Pin - Dome Handle - 17-4 SS Shank - Aluminum Handle - Inch (DACH) DACH-50-400

Quick Release Ball Lock Pin - Dome Handle - 17-4 SS Shank - Aluminum Handle - Inch (DACH). Dome Handle Pin - 17-4 SS Shank - 1/2 in Dia X 4.00 in. These positive locking quick release pins have a wide range of uses in fastening, locating, and alignment applications. The pins will not release until the button on the handle is depressed. Once the button is depressed, the balls retract into the shank allowing the pin to be inserted or removed into or out of a hole. The shanks are made from 17-4 stainless steel. The dome actuator buttons are made from 2024-T4 aluminum and clear anodized. The handles are made from 2024-T4 aluminum and anodized black. The large ergonomic dome actuator button facilitates easy installation and removal. Pins in other grip lengths are available as special orders. Specifications: Diameter Nominal in: 1/2; Diameter Max in: .4985; Diameter Shaft - Min in: .4970; Length Grip in: 4.00; Width at Balls in: .594; Length to top of Balls in: .460; Height Head in: 1.41; Diameter Base of Handle in: .72; Height Base of Handle in: .85; Diameter Button in: 1.30.
