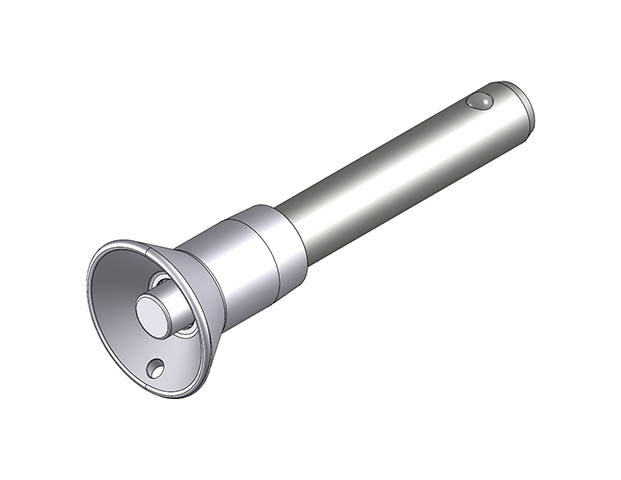

Quick Release Ball Lock Pin - Nautical Handle - 17-4 SS Shank - 300 Series SS Handle - Metric (MNCCH) MNCCH-10-040

Quick Release Ball Lock Pin - Nautical Handle - 17-4 SS Shank - 300 Series SS Handle - Metric (MNCCH). Nautical Handle Pin - 17-4 SS Shank - 10mm Dia X 40mm. These positive locking quick release pins have a wide range of applications in fastening, locating, and alignment applications. The pins will not release until the button on the handle is depressed. Once the button is depressed, the balls retract into the shank allowing the pin to be inserted or removed into or out of a hole. The shank material is 17-4 stainless steel. The handles are designed to prevent accidental release and are machined from 303 stainless steel. These pins are not supplied with stainless steel split rings. Pins in other grip lengths are available as special orders. Specifications: Diameter Nominal mm: 10; Diameter Shaft - Max mm: 9.96; Diameter Shaft - Min mm: 9.92; Length Grip mm: 40; Width at Balls mm: 11.86; Length to top of Balls mm: 9; Height Handle mm: 26.9; Diameter Base of Handle mm: 14.2; Height Base of Handle mm: 16.8; Diameter Button mm: 7.4.
