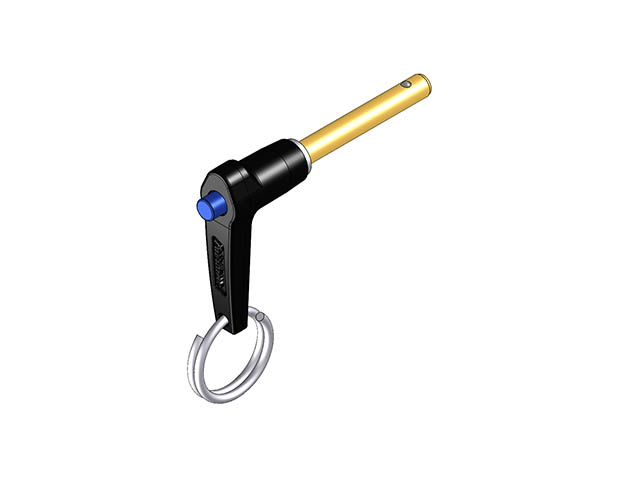

Quick Release Ball Lock Pin - L-Handle - 4130 Steel Shank - Aluminum Handle - Metric (MLAAS) MLAAS-06-035

Quick Release Ball Lock Pin - L-Handle - 4130 Steel Shank - Aluminum Handle - Metric (MLAAS). L-Handle Pin - 4130 Shank - 6mm Dia X 35mm. These positive locking quick release pins have a wide range of uses in fastening, locating, and alignment applications. The pins will not release until the button on the handle is depressed. Once the button is depressed, the balls retract into the shank allowing the pin to be inserted or removed into or out of a hole. The shanks are made from 4130 steel with zinc plating. The handles for the pins listed below are made from 380 aluminum casting with black E Coat or anodized finish. The pins are supplied with a stainless steel split ring for attaching a cable assembly. For specific application requirements, custom modifications are available for this product line. RoHS compliant. Specifications: Diameter Nominal mm: 6; Diameter Shaft - Max mm: 5.96; Diameter Shaft - Min mm: 5.92; Length Grip mm: 35; Width at Balls mm: 6.99; Length to top of Balls mm: 7; Height Handle mm: 30.7; Diameter Base of Handle mm: 11.9; Height Base of Handle mm: 19.3; Diameter Button mm: 5.8.
