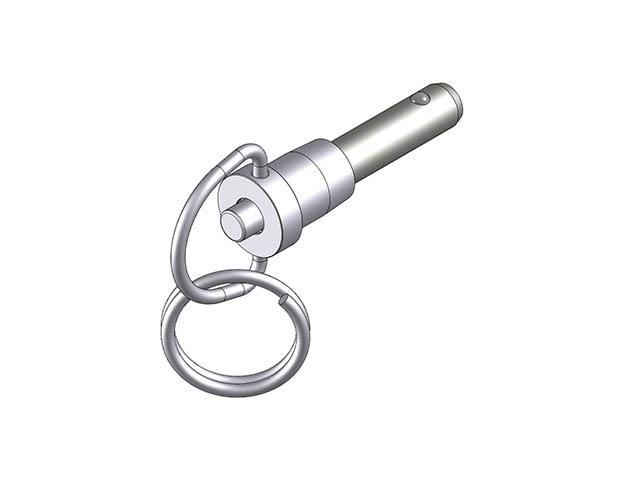

Quick Release Ball Lock Pin - Ring Handle - 17-4 SS Shank - 300 Series SS Handle - Inch (RCCH) RCCH-31-075

Quick Release Ball Lock Pin - Ring Handle - 17-4 SS Shank - 300 Series SS Handle - Inch (RCCH). SS Ring Handle Pin - 17-4 SS Shank - 5/16 in Dia X .75 in. These positive locking quick release pins have a wide range of applications in fastening, locating, and alignment applications. The pins will not release until the button on the handle is depressed. Once the button is depressed, the balls retract into the shank allowing the pin to be inserted or removed into or out of a hole. The shanks are made from 17-4 stainless steel. The handles and actuator buttons are made from 303 stainless steel. The pins are supplied with a stainless steel split ring for attaching a cable assembly. Pins in other grip lengths are available as special orders. Select the following link for material specifications . Specifications: Diameter Nominal in: 5/16; Diameter Shaft - Max in: 0.3110; Diameter Shaft - Min in: 0.3095; Length Grip in: 0.75; Width at Balls in: 0.375; Length to top of Balls in: 0.330; Height Handle in: 0.91; Diameter Base of Handle in: 0.47; Diameter Button in: 0.23; Diameter Handle - Rim in: 0.59.
