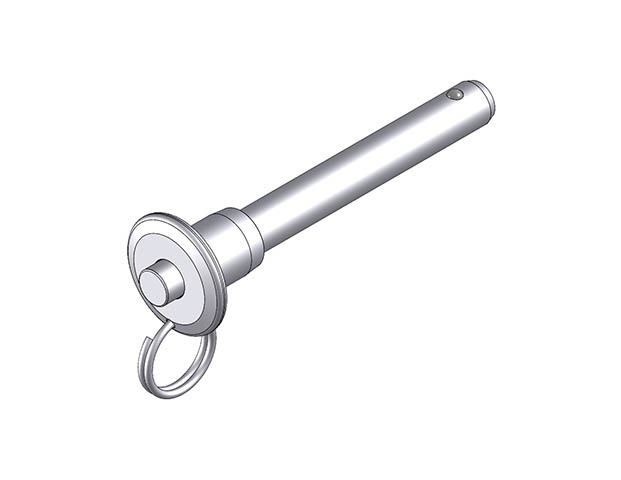

Quick Release Ball Lock Pin - Button Handle - 300 Series SS Shank - 300 Series SS Handle - Inch (BCCS) BCCS-50-300

Quick Release Ball Lock Pin - Button Handle - 300 Series SS Shank - 300 Series SS Handle - Inch (BCCS). SS Button Handle Pin - 300 Series SS Shank - 1/2 in X 3.00 in. These positive locking quick release pins have a wide range of applications in fastening, locating, and alignment applications. The pins will not release until the button on the handle is depressed. Once the button is depressed, the balls retract into the shank allowing the pin to be inserted or removed into or out of a hole. The shanks are made from 300 series stainless steel. The handles and actuator buttons are made from 303 stainless steel. The pins are supplied with a stainless steel split ring for attaching a cable assembly. Pins in other grip lengths are available as special orders. Specifications: Diameter Nominal in: 1/2; Diameter Shaft - Max in: .4985; Diameter Shaft - Min in: .4970; Length Grip in: 3.00; Diameter at Balls in: .594; Length to top of Balls in: .460; Length Head in: 1.27; Width Shoulder in: .72; Length Head Below Rim in: .85; Diameter Button in: .42.
