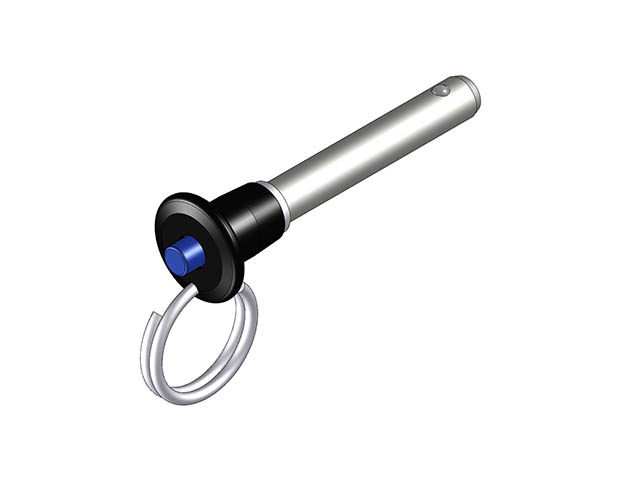

Quick Release Ball Lock Pin - Button Handle - 17-4 SS Shank - Aluminum Handle - Metric (MBACH) MBACH-08-040

Quick Release Ball Lock Pin - Button Handle - 17-4 SS Shank - Aluminum Handle - Metric (MBACH). Button Handle Pin - 17-4 SS Shank - 8mm Dia X 40mm. These positive locking quick release pins have a wide range of applications in fastening, locating, and alignment applications. The pins will not release until the button on the handle is depressed. Once the button is depressed, the balls retract into the shank allowing the pin to be inserted or removed into or out of a hole. The shanks are made from 17-4 stainless steel. The handles are made from 2024-T4 aluminum and anodized black. The pins are supplied with a stainless steel split ring for attaching a cable assembly. Pins in other grip lengths are available as special orders. Specifications: Diameter Nominal mm: 8; Diameter Shaft - Min mm: 7.96; Diameter Shaft - Max mm: 7.92; Length Grip mm: 40; Diameter at Balls mm: 9.42; Length to top of Balls mm: 8; Height Handle mm: 23.4; Width Shoulder mm: 11.9; Length Handle Below Rim mm: 16.0; Diameter Button mm: 5.8.
